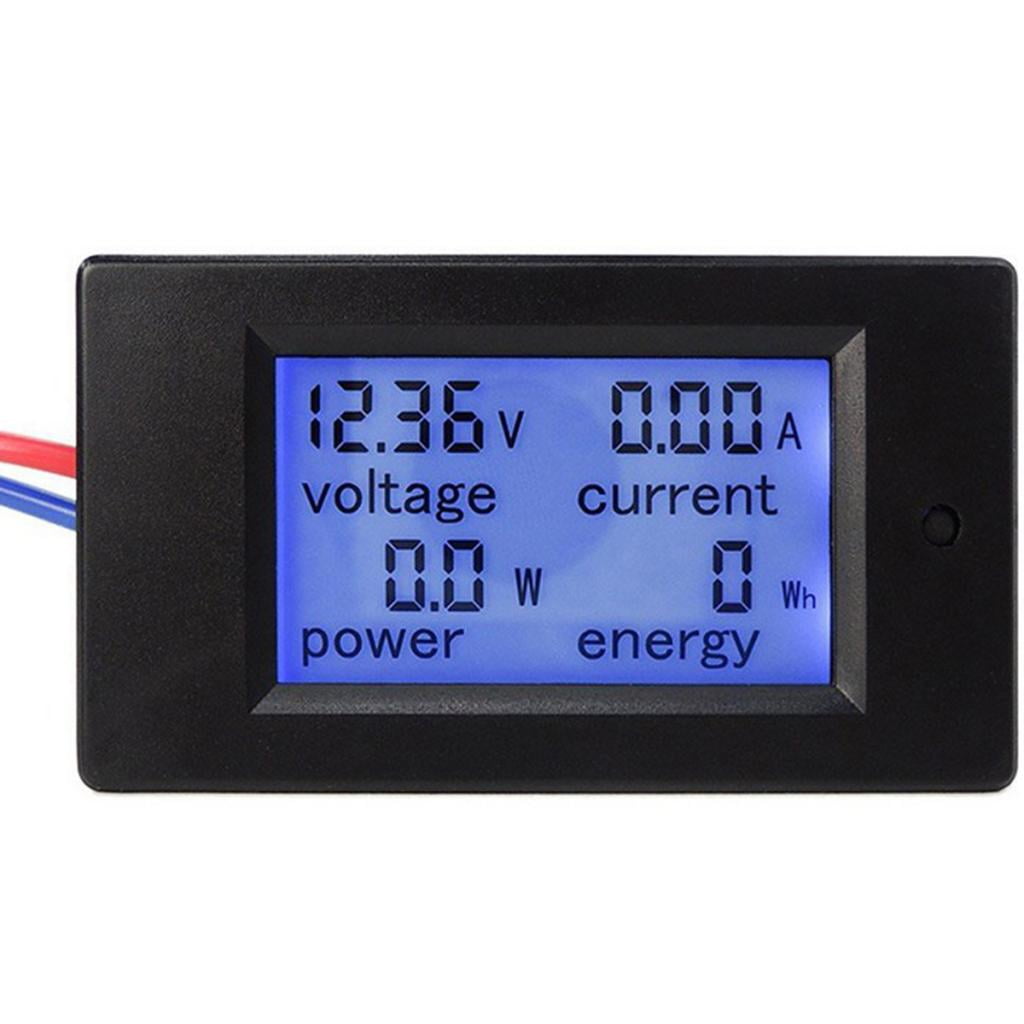

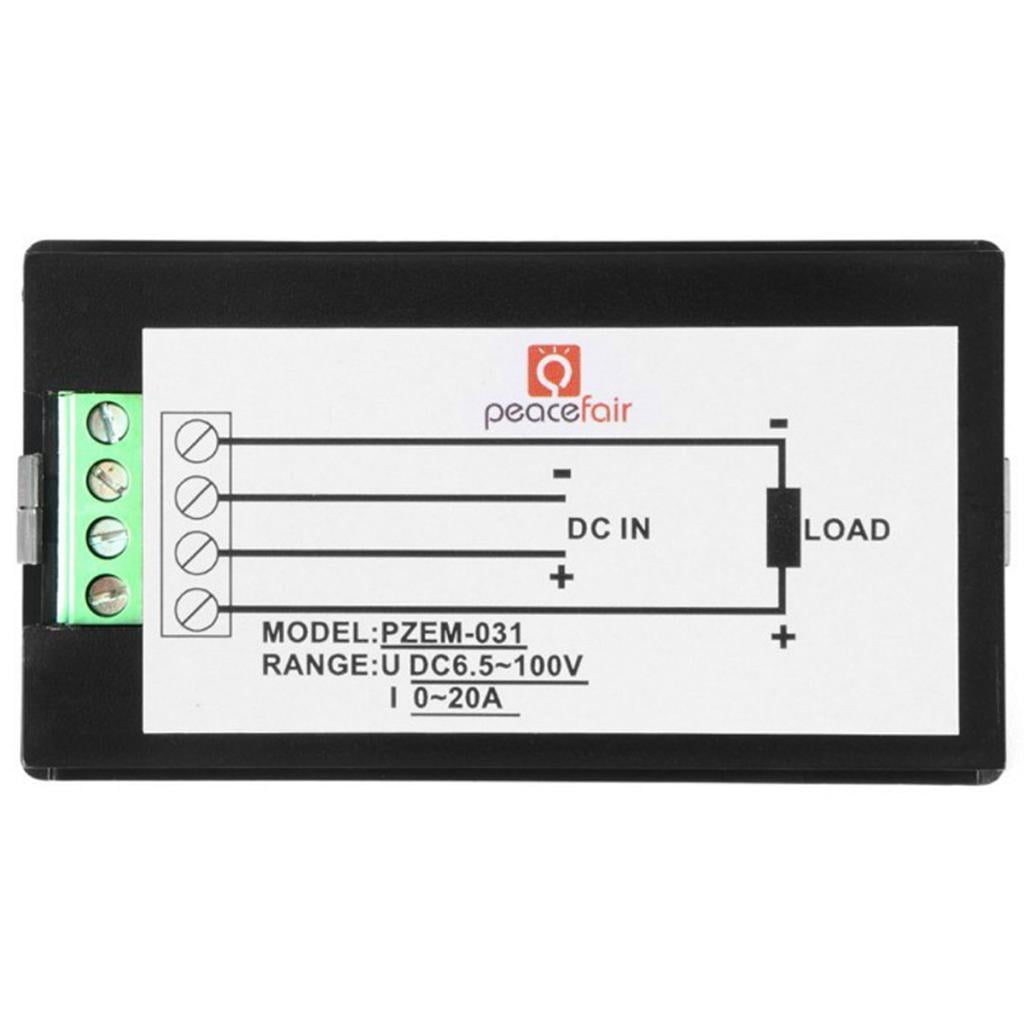

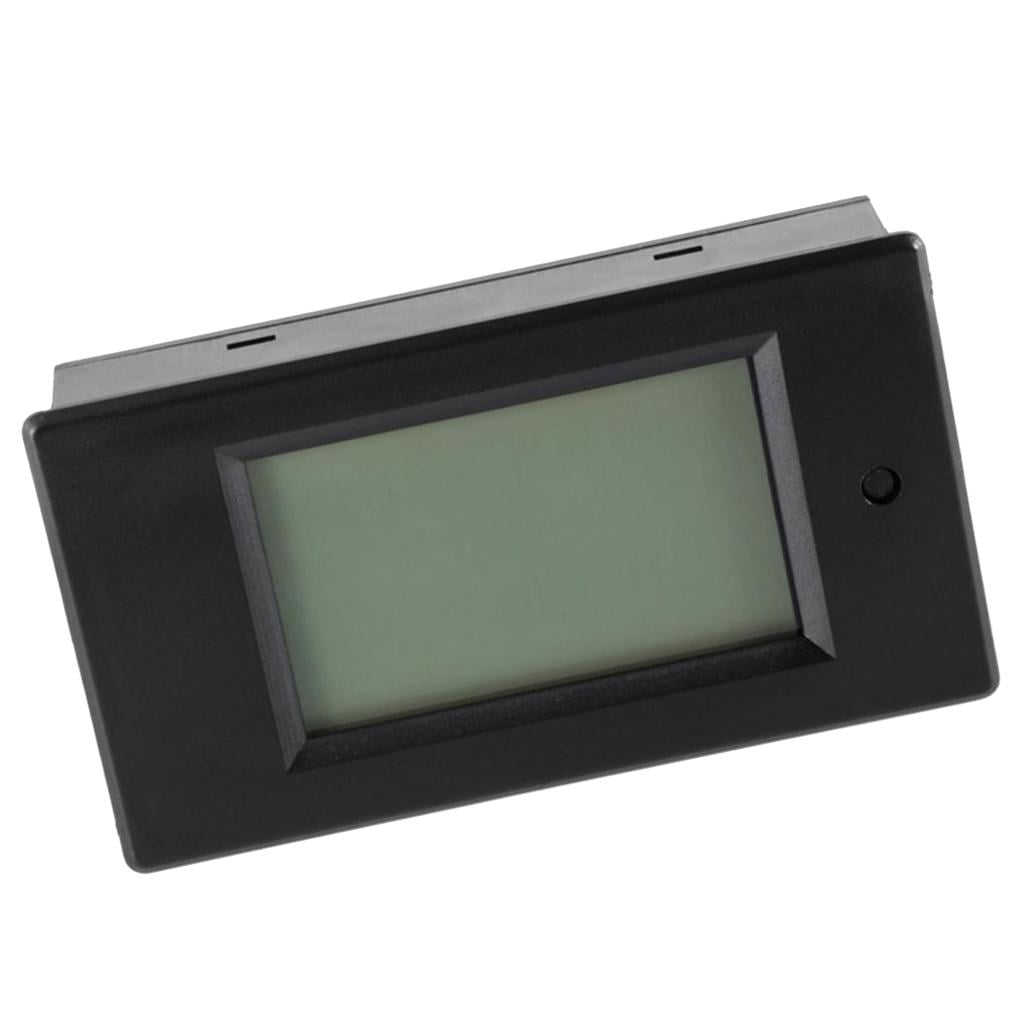

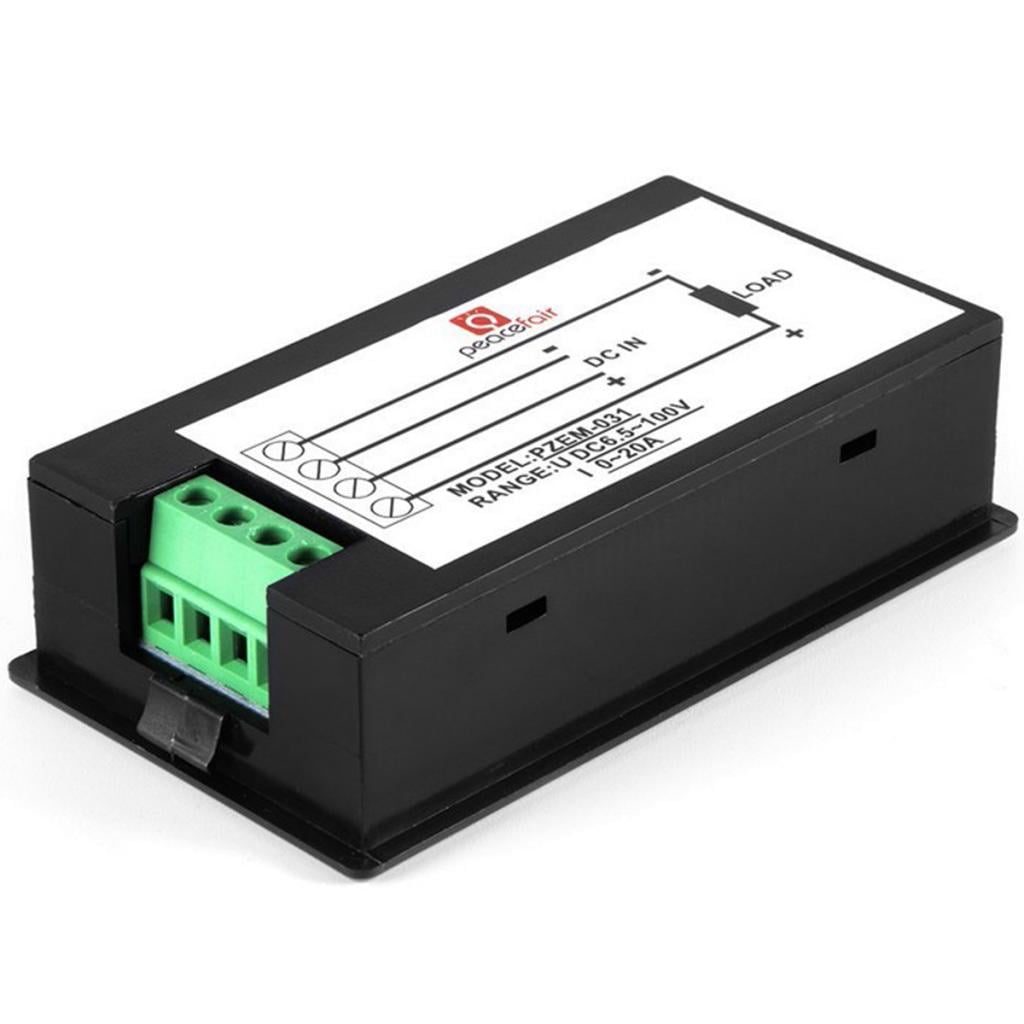

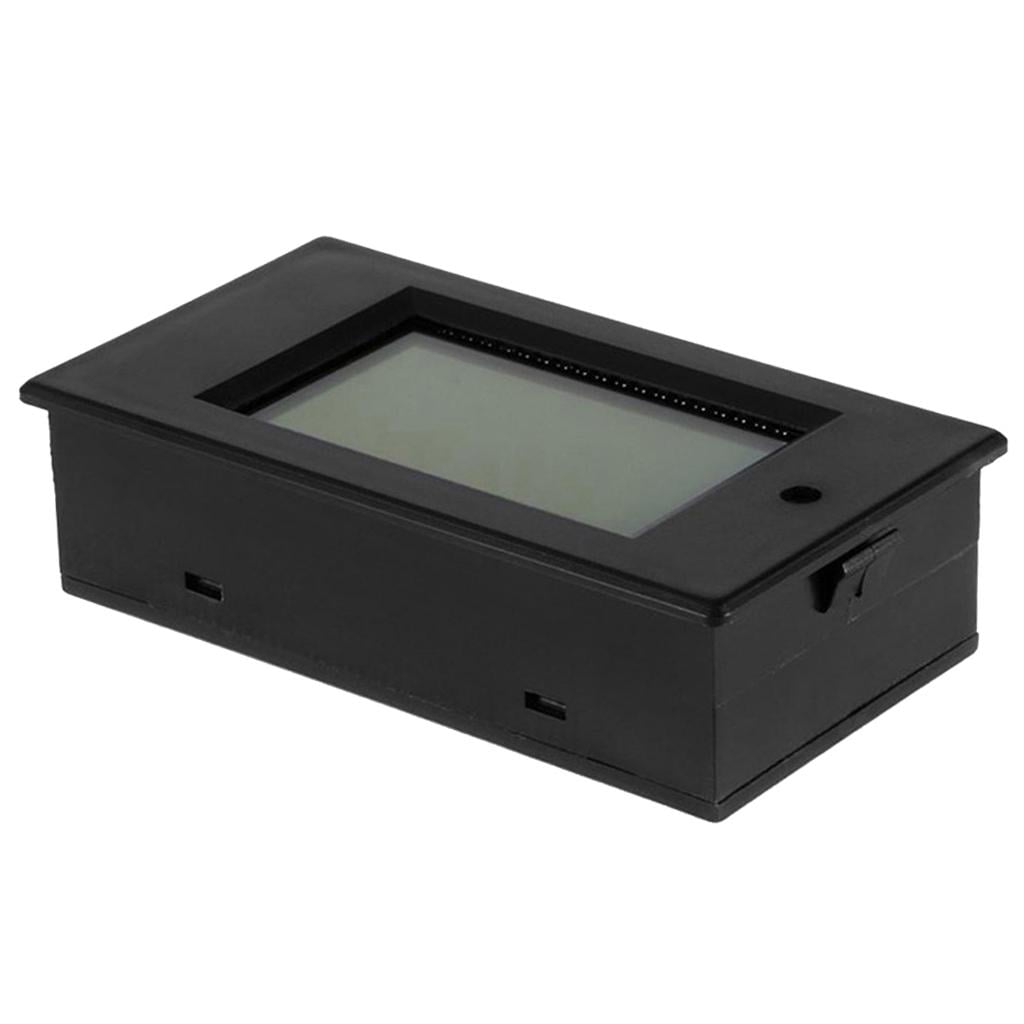

DC 6.5-100V 20A Power Meter Voltmeter Ammeter Kwh Watt Panel Meters

<p><b>Description:</b></p><p>Measurement and monitor the electrical s(voltage, current, kwh, watt).<br>Overload alarm function( alarm threshold, backlight flashing).<br>Power alarm threshold function(can set up their own power alarm threshold).<br>Power(kwh)button reset function.<br>When power off ,store the data, when on ,continue the date.<br>Large screen LCD liquid crystal screen full display function(voltage, current ,kwh,watt).<br>Backlight function.</p><p><b>Specification:</b></p><p>1. Power Measuring Range: 0~2kW<br> Display formats less than 1kW: 0.0 9.9W<br> Display format more than 1kW: 1000~2000W<br>2. kWh Measuring Range: 0~9999kWh<br> Display formats less than 10kWh: 0~9999Wh<br> Display formats more than 10kWh: 10~9999kWh<br>3. Voltage Measuring Range: 6.5~100V<br> Display formats: 6.50~99.99V<br>4. current Measuring Range: 0~20A<br> Display formats: 0.00~20.00<br>KWH measurement is nonvolatile with power interruption. It can be reset to reset button.<br>Operating Temperature: -10℃ ~65℃<br>Operating Humidity: 10~85% RH<br>You can turn on/off the light manually.<br>Material: ABS plastic<br><b>Specification :</b><br>operating voltage: 6.5-100VDC<br>Test voltage: 6.5 ~ 100VDC<br>Rated power: 20A/2000W<br>Measurement accuracy: .0</p><p><b>Package Includes:</b></p><p>1 Piece LCD Panel DC Power Meter <br></p><p><b>Note:</b></p><p>1. Suitable for indoor ,not outdoor<br>2. should not exceed te rated power<br>3. wiring can not be wrong</p>
